Single core PVC Insulated Domestic wire
Owing to our Consistent efforts for quality and providing the best, we have developed exhaustive range of domestic wires and cables suitable to Indian homes and varied conditions. Manufactured with best quality of conductors (electrolytic Grade copper, over 100% Pure) and finest grade of indigenously developed PVC Compound, MAULICAB wires & Cables Gives maximum safety at no extra cost.

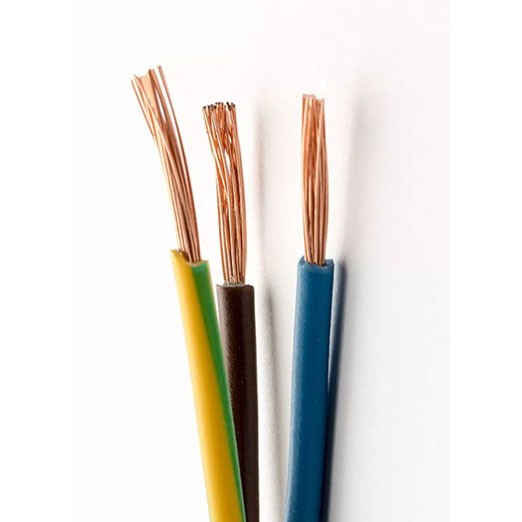

Single Core Wires
Harness Wire

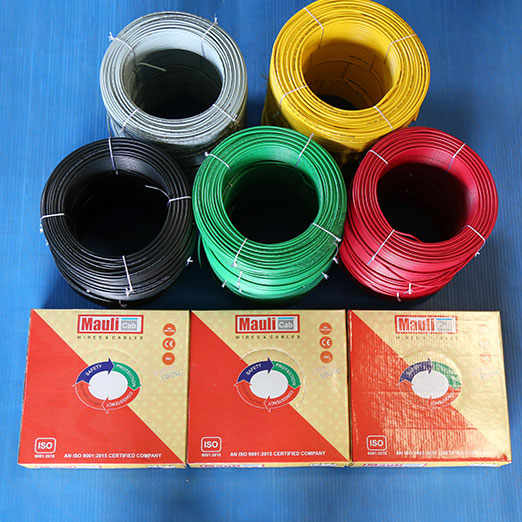

Housing Wire

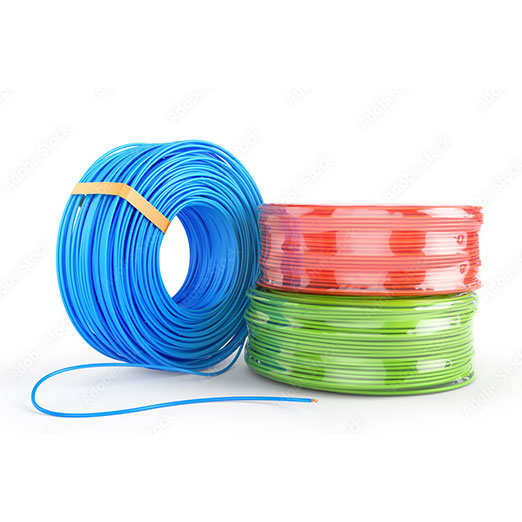

PVC Insulted Wire
Construction: Conductor: Bunched Annealed Copper Standard : IS: 694: 1990 Sizes : 0.50mm to 50mm
Insulation : Double layer type A PVC insulation with inner layer of natural PVC & very thin outer layer of colour PVC.
| Nominal area in sq. mm |
No. of Strands / Nominal Dia |
Max. DC Resistance (Ohm/Km at 20°C) |
Nominal insulation thickness in mm |
Outer dia (Approx) |
Current rating in amps |
|---|---|---|---|---|---|
| 0.50 | 16/0.20 | 39.00 | 0.60 | 2.20 | 04 |
| 0.75 | 24/0.20 | 26.00 | 0.60 | 2.40 | 07 |
| 1.00 | 14/0.30 | 18.10 | 0.70 | 2.80 | 12 |
| 1.50 | 22/0.30 | 12.10 | 0.70 | 3.20 | 16 |
| 2.50 | 36/0.30 | 7.41 | 0.80 | 3.80 | 22 |
| 4.00 | 56/0.30 | 4.61 | 0.80 | 4.30 | 29 |
| 6.00 | 84/0.30 | 3.08 | 0.80 | 4.90 | 37 |
| 10.00 | 80/0.40 | 1.83 | 1.00 | 6.20 | 51 |
| 16.00 | 126/0.40 | 1.15 | 1.00 | 7.20 | 68 |
| 25.00 | 196/0.40 | 0.727 | 1.20 | 8.90 | 86 |
Our Manufacturing Process
We begin by drawing 8mm copper rod to the precise size specified by the customer. After being annealed for softer and more conductive wire, bunching is done. High-grade copper wire that is prepared for commercial and industrial application is the end result.

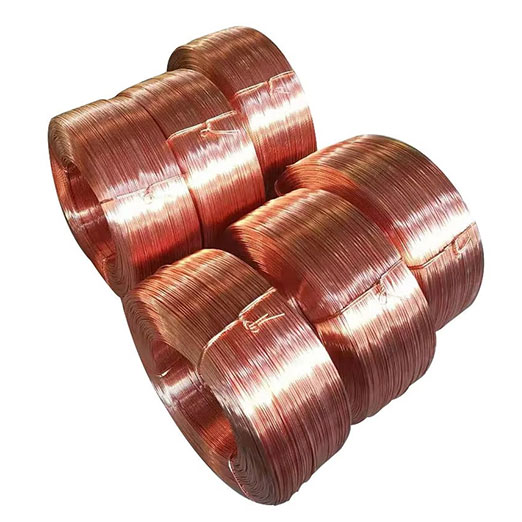

Bare Copper Wire
Bare Copper is a good conductor of electricity, and that’s why Mauli Wire and Cables uses high-quality copper wires for all types of electrical fittings and cable wires. These wires, also known as “Electrolyte Copper,” are widely used in subways, conduits, and transit systems—both light and heavy-duty. Thanks to their superior properties, copper wires from Mauli Wire and Cables are preferred globally for electrical installations.
Heat Resistant : Copper wires are highly heat resistant and second only to silver in terms of electrical conductivity. They can carry a high electrical load with ease, making them ideal for large circuits and subway systems. Mauli Wire and Cables ensures each wire is designed to withstand such demands reliably.
Malleability: One of the standout features of copper wires is their malleability, which allows them to be easily shaped and molded into any form. This makes installation simple and flexible. At Mauli Wire and Cables, we ensure that our copper wires meet the highest standards of flexibility and strength for various applications.
1.6 MM Copper Rod

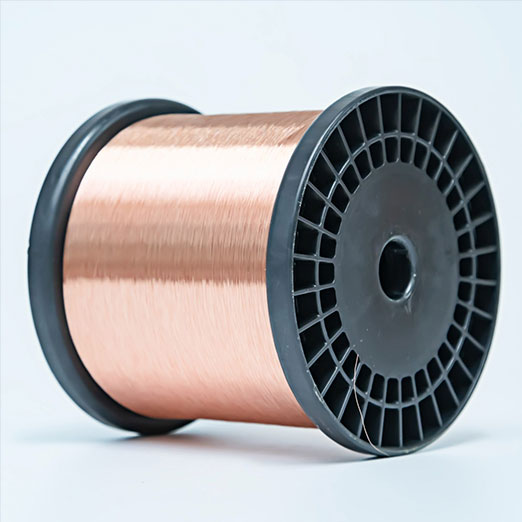

Bare Copper

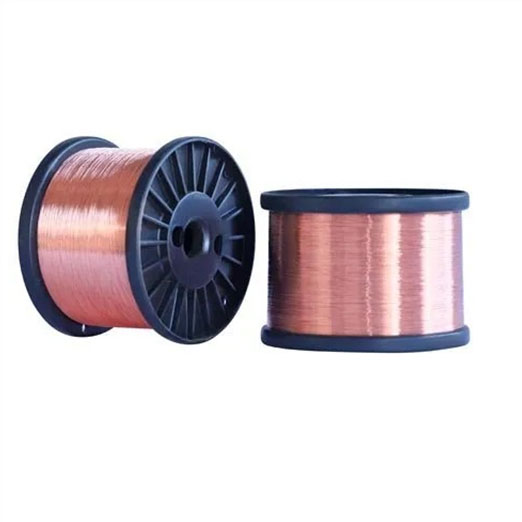

Bare Copper

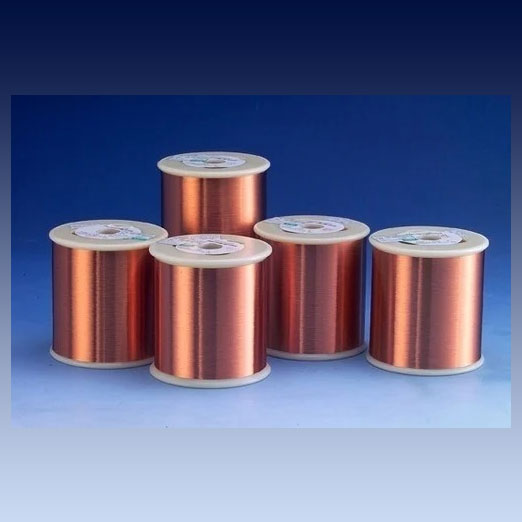

Bare Copper
Next Stage : Manufacturing Process – Step by Step
Once the initial processing is complete, the manufacturing process proceeds in several crucial steps to ensure the quality and performance of the copper wires. Here’s how copper wires stand out during and after manufacturing:
Ductility : Copper is highly ductile – it can be stretched into extremely thin wires, even finer than a strand of human hair. This property makes it ideal for applications like headphones, intricate circuits, and other electronics where fine wiring is essential.
Corrosion Resistance : Copper wires are resistant to corrosion which makes their use even more preferable as in long term they would be easy to handle and use.
Energy Efficient : Copper wires are energy efficient which clearly means that they are heavily used in manufacturing process as they give better results as compared to other wires.
